Introduction

  • Web service that gives access to message queue that can be used to store messages while waiting for server to process them.
  • SQS is Pull based system, not push-based.
  • Distributed queue system to enable web service applications to quickly and reliably queue messages that one component in application generates to be consumed by other component.
  • A queue is temporary repository for messages that are awaiting processing.
  • Using SQS, you can decouple the components of an application so they run independently, easing message management between components.
  • Any component of a distributed application can store messages in the queue.
  • Message can contain upto 256KB of text in any format.
  • Messages can be kept in the queue from 1 minute to 14 days
  • Default retention period is 4 days.
  • Any component can later retrieve the messages programmatically using the Amazon SQS API.
  • The queue acts as buffer between the component producing and saving data, and the component receiving the data for processing.
  • Queue resolves issues that arise if the producer is faster than the consumer or if the producer or consumer are only intermittently connected to the network.

SQS Visibility Timeout

  • Amount of time that the message is invisible to SQS after a reader picks up the message.
  • Provided the job is processed before the visibility timeout expires, the message will then be deleted from the queue.
  • If the job is not processed within that time, the message will become visible again and another reader will process it. This could result in the same message being delivered twice.
  • Default visibility timeout is 30 seconds, increase if your task takes >30 seconds.
  • Maximum is 12 hours.

Long Polling

  • SQS uses Long Polling for retrieving messages from queue.
  • While Regular Short Polling returns immediately(even if the queue is empty), Long Polling doesn’t return a response until a message arrives in the message queue, or the Long Polling times out.
  • Maximum long poll time out is 20 seconds.
  • As such, Long Polling can save you money.

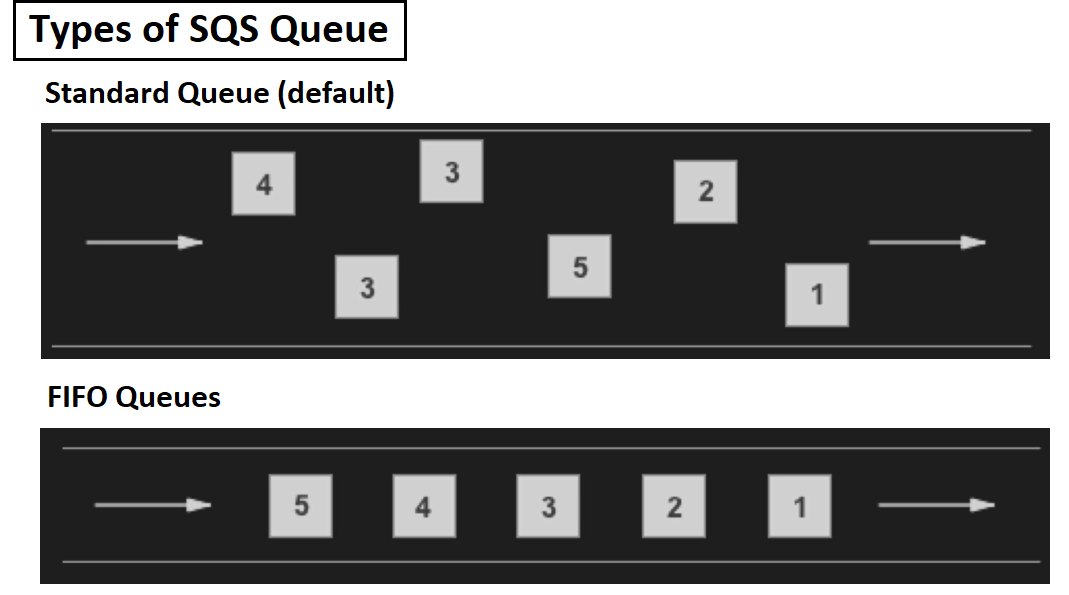

Queue Types

  • Standard Queue (default)
  • FIFO Queues

Standard Queue

  • Lets you have a nearly-unlimited number of transactions per second.
  • Guarantees that a message is delivered at least once. However. occasionally(because of high-distributed architecture that allows high throughput), more than one copy of message might be delivered out of order.
  • Standard queues provide best-effort ordering which ensures that messages are generally delivered in the same order as they are sent.

FIFO Queues

  • FIFO queues complements the standard queue.
  • Important Feature
    • First In First Out Delivery
    • Exactly once processing
  • Order in which messages are sent and received is strictly preserved and a message is delivered once and remains available until a consumer processes and deletes it; duplicates are not introduced into the queue.
  • FIFO queues also support message groups within a single queue.
  • FIFO queues are limited to 300 transactions per second (TPS), but have all the capabilities of standard queue.

SQS Delay Queue

  • Postpone delivery of new message to a queue for number of seconds.
  • Message sent to a delay queue remains invisible to customers for the duration of the delay period
  • Default delay is 0 seconds, max is 900 seconds (15 Minutes).
  • For standard queues, changing the setting doesn’t affect the delay of messages already in the queue, only new messages.
  • For FIFO queues, this affects the delay of messages already in the queue.

When to use Delay Queues

  • Large distributed applications which may need to introduce a delay in processing.
  • You need to apply a delay to an entire queue of messages.
  • eg. adding a delay of few seconds to allow for updates to your sales and stock control databases before sending a notification to a customer confirming an online transaction.

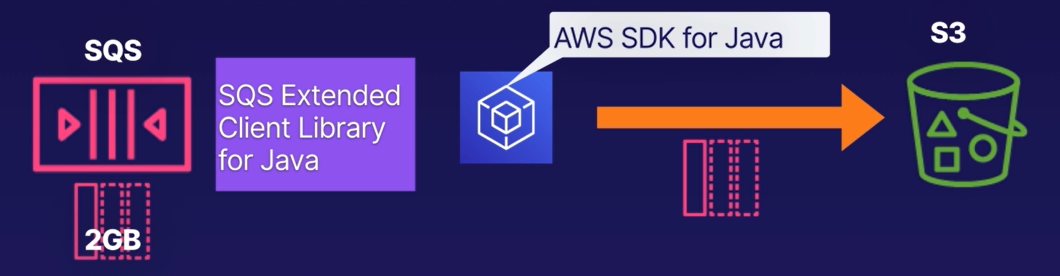

Messaging Large SQS Messages

  • For large SQS messages - 256KB upto 2GB.
  • Use S3 to store the messages.
  • Use Amazon SQS Extended client library for Java to manage them.
  • AWS SDK for java provides an api for S3 bucket and object operations.

SQS Extended Client Library for java allows you to

  • Specify that messages are always stored in S3 for only messages > 256KB
  • Send a message which references a message object stored in S3.
  • Get a message object from S3.
  • Delete a message object for S3.

For Large SQS

  • You need
    • AWS SDK for java
    • SQS extended client library for java
    • S3 bucket
  • You can’t use
    • AWS CLI
    • AWS Management Console/ SQS console
    • SQS API
    • Any other AWS SDK
