Introduction to Graphs

  • Non Linear Data Structure.
  • Tree has Constraint - N nodes, must have N-1 edges.
  • A Graph G is an ordered pair of a set V of vertices and a set E of edges.
    • ordered pair (a,b) != (b,a) if a!=b
G = (V , E)
|V| = No. of vertices
|E| = No. of Edges

If No Self Loop or parallel Edges,
0 <= |E| <= n(n-1), if directed
0 <= |E| <= n(n-1)/2, if undirected
where n = |V|
  • Dense Graph - Too many edges - use adjacency matrix
  • Sparse Graph - Less edges - use adjacency list

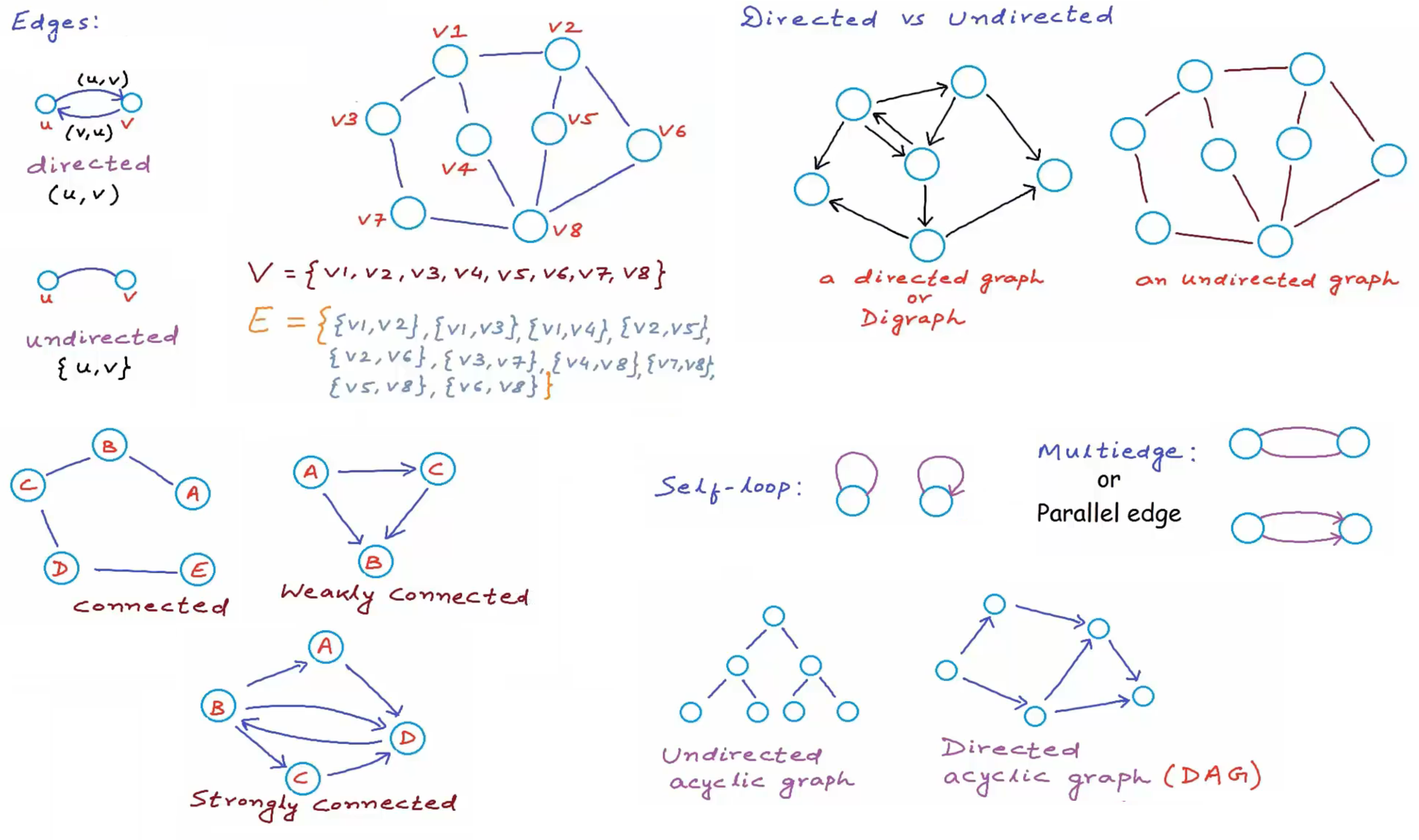

graphs-terminology

  • Walk - A sequence of vertices where each adjacent pair is connected by an edge.
  • Path - A Walk where no vertex or edge is repeated.
  • Trail - A Walk where no edge is repeated, vertex might be repeated.
  • Closed Walk - Starts and Ends at the same vertex.
  • Cycle - No repetition other than start and end.
  • Acyclic Graph - Graph with no cycle.

Strongly Connected Graphs

  • If there is a path from any vertex to any other vertex.

Examples

  • Facebook is undirected graph.
  • World wide web is directed graph.
  • Intracity Road Network is undirected graph.
  • Intercity Road Network is directed graph.

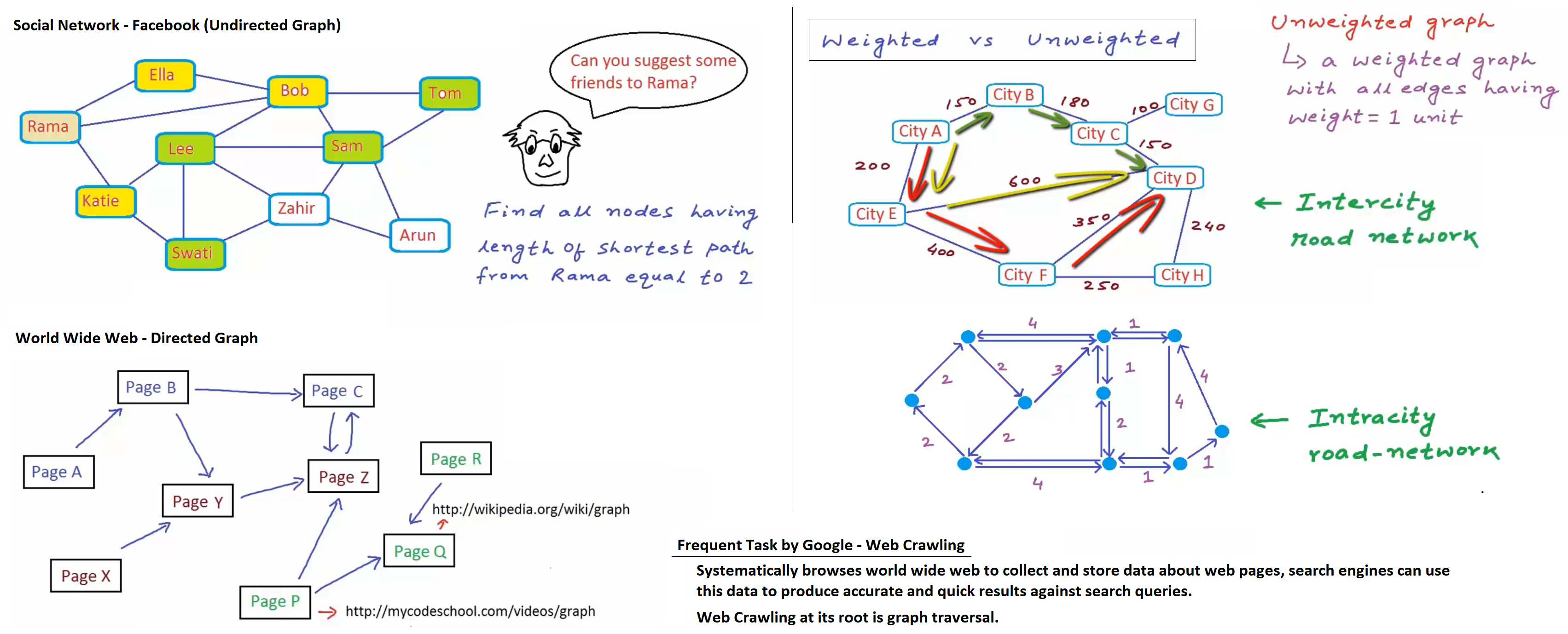

graph-applications

Graph Representation

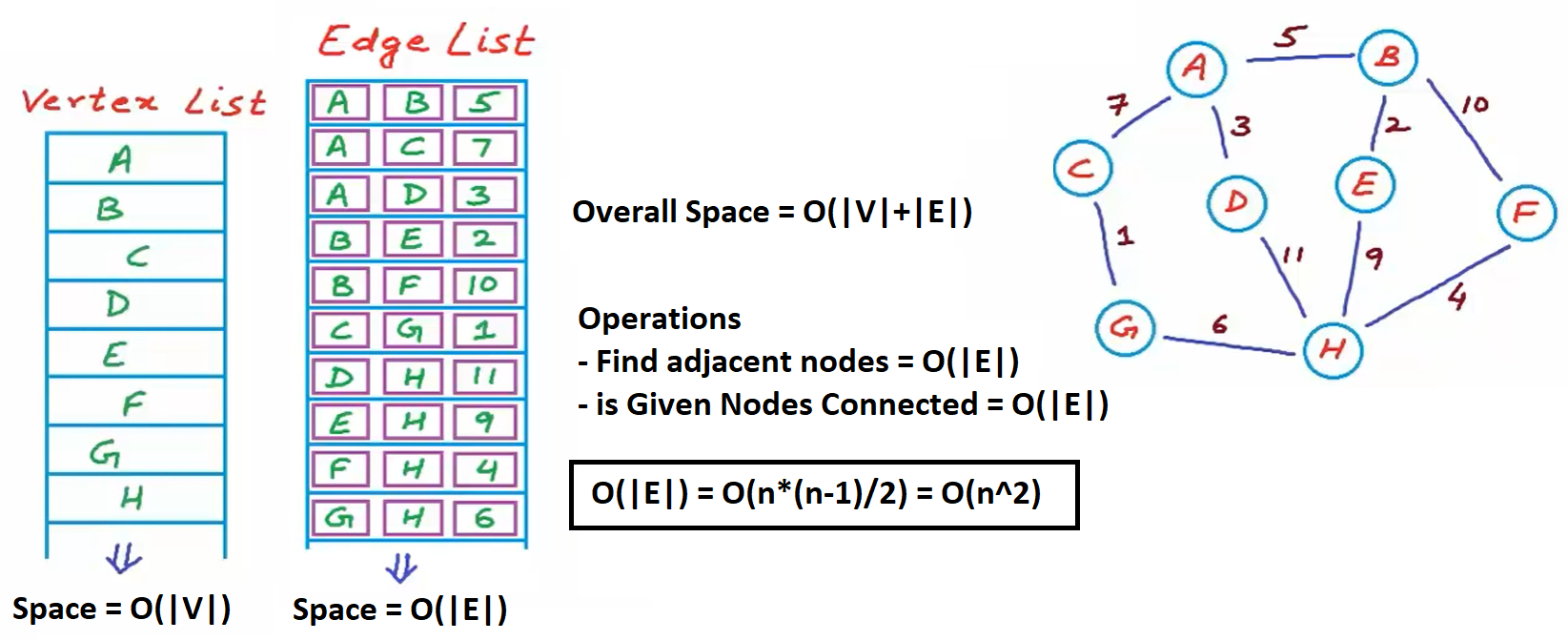

graph-representation-inefficient

Most practical graphs will be sparse. Facebook - if 10^9 users then, each user may have 1000 friends but not all users on fb will be his friends.

total edges required = 10^9 * 1000 / 2 = 5 * 10^11 ~ 0.5 Terabyte
total space for adjacency Matrix = 10^18 ~ 1 Petabyte

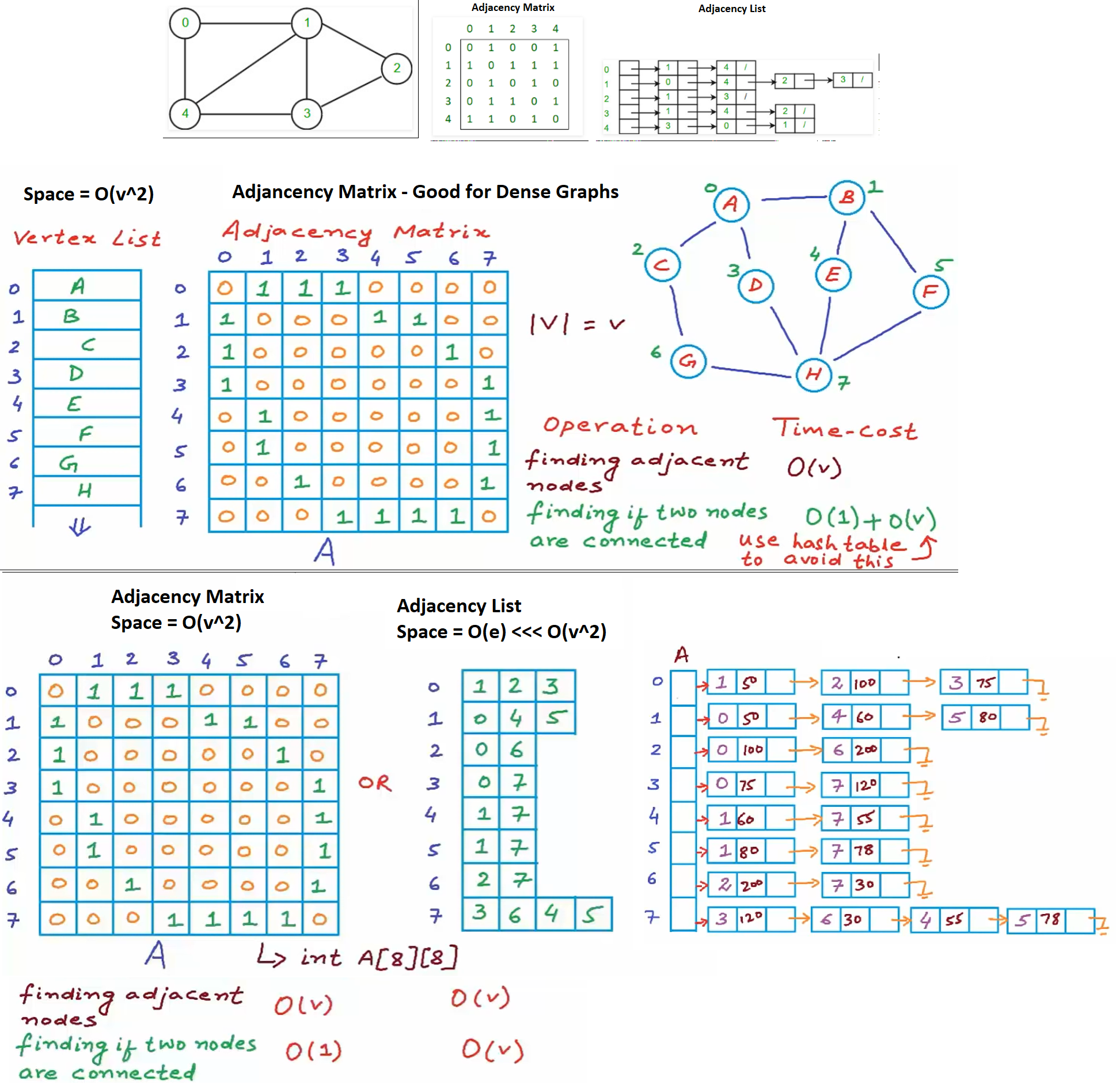

graph-representaion

Graph

  • DS with two components:
    • finite set of vertices also called as nodes.
    • finite set of ordered pair of the form (u, v) called as edge.
  • pair is ordered as (u, v) != (v, u) for directed graph(di-graph). Edges may contain weight/value/cost.
    • V -> Number of Vertices.
    • E -> Number of Edges.

Direction based classification

  • Undirected Graph : The graph in which all the edges are bidirectional.
  • Directed Graph : The graph in which all the edges are unidirectional.

Weight based classification

  • Weighted Graph : weight associated with the edges.
  • Unweighted Graph : no weight associated to the edges.


Time Complexities Adjacency Matrix Adjacency List
Traversal (By BFS or DFS) O(V^2) (By BFS or DFS) O(ElogV)
Space O(V^2) O(V+E)

Examples

  • find shortest path in any network (in google maps).
  • social networking websites with friend suggestion.
