- Introduction
- SLL - Singly Linked List
- DLL - Doubly Linked List
- CLL - Circular Linked List
- CDLL - Circular Doubly Linked List
- Memory Efficient DLL - XOR
Introduction
- Linear Data Structure
- Dynamic Size
Types of Linked List
- Singly Linked List (SLL)
- Circular SLL - Used in elimination based board game (turn by turn chances to player). Example, After the Player 4 we should give chance to Player 1.
- Doubly Linked List (DLL) - Music Player next and prev button.
- Circular DLL - When we want to loop through the list indefinitely until the list exists, example - Alt+Tab in windows.
Linked List
- Linear DS (like arrays) where each element is a separate object.
-
Node - data + reference to next node.
- Singly Linked List: node has reference of next node only. last node has next as NULL. example 1->2->3->4->NULL
- Doubly Linked List: node has prev and next reference, can traverse both directions. example. NULL<-1<->2<->3->NULL
-
Circular Linked List: all nodes connect to form a circle. no NULL at the end. can be either singly or doubyl. any node can be made as starting node, useful in implementation of circular queue in linked list. example. 1->2->3->1
- Accessing time of an element: O(n) //no random access
- Search time of an element : O(n)
- Insertion of an Element : O(1) [If we are at the position where we have to insert an element]
- Deletion of an Element : O(1) [If we know address of node previous the node to be deleted]
General Operations
- Create a List
- Insert
- Traverse
- Search
- Delete
- Delete entire List
Array vs List
| Array | List | |
|---|---|---|
| Size | Fixed Size, unused memory | No unused memory, extra 4 bytes per item for pointer |
| Memory | Contiguous, may not be available for large size requirements | Sparse |
| Access | O(1) | O(n) - traverse to element |
| Insert(Head) | O(n) | O(1) |
| Insert(Tail) | O(n) | O(n) |
| Insert(Mid) | O(n) | O(n) |

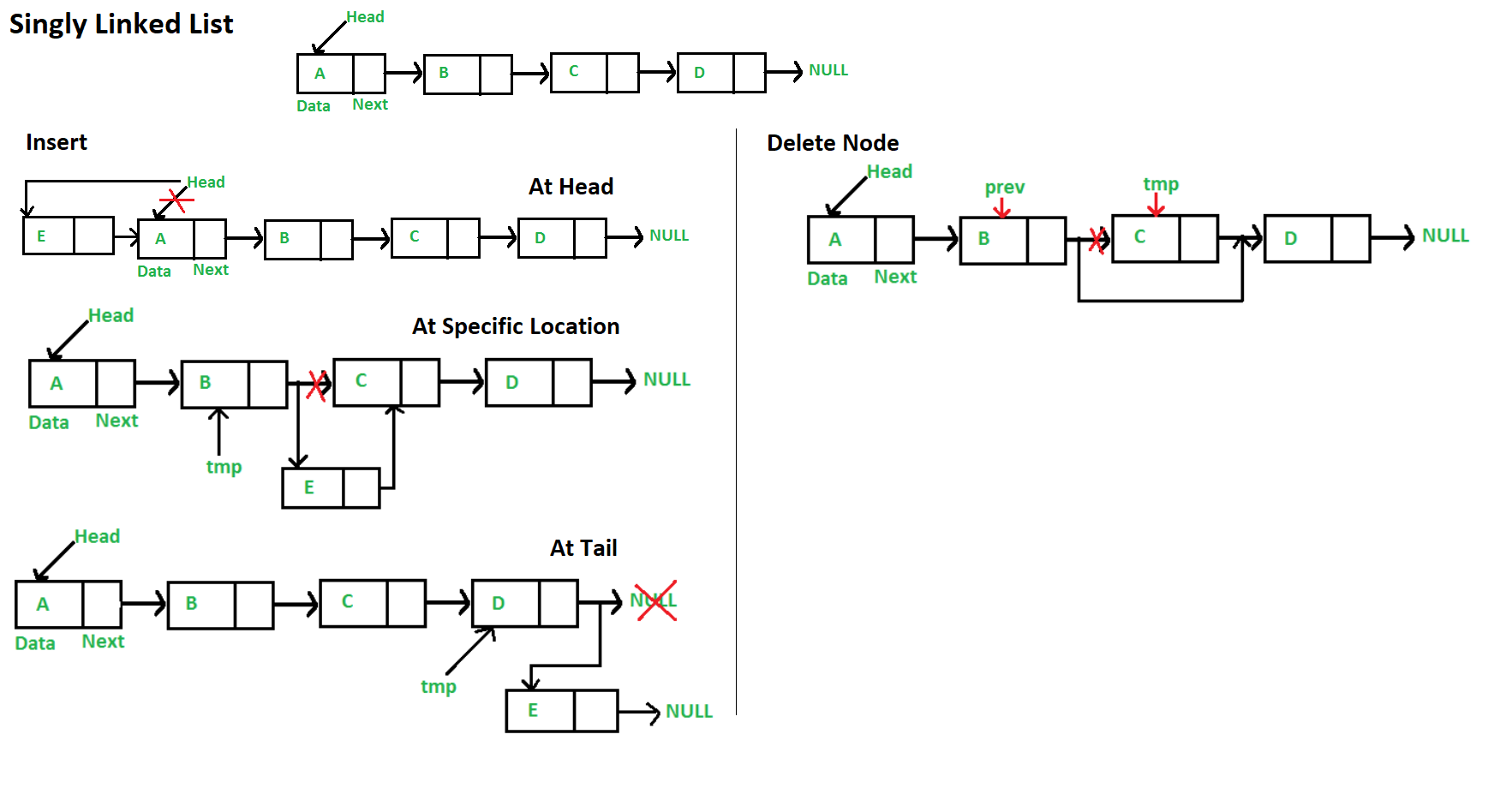

SLL - Singly Linked List
| SLL Operations | ||
|---|---|---|
| Insert at head | O(1) | |
| Insert at tail | O(n) | Traverse till last and delete, if tail pointer then O(1) |
| Insert at index n | O(n) | |
| Delete at head | O(1) | |
| Delete at tail | O(n) | Traverse till the element and then delete |
| Delete at index n | O(n) | |
| Search | O(n) |
To improve insert/delete at tail to O(1), we can have tail reference along with head reference.
| Reverse a List | Iterative | Recurive |
|---|---|---|
| Time Complexity | O(n) | O(n) |
| Space Complexity | O(1) | O(n) |
Operations
Insert
Delete
Search
DLL - Doubly Linked List
- contains pointer to both prev and next node, extra memory requirement.
- forward and reverse lookup.
- For int data, each node is 12 bytes(4bytes + 4bytes + 4bytes)
For Deleting DLL completely, delete prev field of every node and then delete head and tail references.
