HTTP

Hypertext Transfer Protocol

Table of contents
  1. HTTP
  2. Introduction
  3. URL (Uniform resource locator)
  4. Http Request and Response Message
    1. MIME Types (Multipurpose Internet Mail-Extension)
    2. Cookies
    3. Avoiding caching
    4. HTTP Conditional GET
  5. Http Methods
    1. POST vs PUT
  6. HTTP Response Codes
    1. HTTP
  7. Http Authentication
    1. Transfer Layer Security (TLS / SSL)
    2. Basic access Authentication (BASIC)
    3. Digest access authentication (DIGEST)
    4. Form-Based Authentication (FORM)

Introduction

  • Application protocol for distributed, collaborative, hypermedia information systems.
  • foundation of data communication for the World Wide Web.
  • URI (Uniform resource identifier) - string of characters used to identify a name or a resource
    • URN (Uniform resource name) - URI that uses the urn scheme and does not imply availability of the identified resource.
    • URL (Uniform resource locator)
  • Both URN’s (names) and URL’s (locators) are URI’s, and a particular URI may be a name and a locator at the same time.


  • RFC 1737: Uniform Resource Names (URN): Link
  • RFC 1808: Relative Uniform Resource Locators (URL): Link
SCHEME DESCRIPTION
http Hypertext transfer protocol
https Secured Hypertext transfer protocol
mailto Email composer
ftp File transfer protocol

URL (Uniform resource locator)

  • string that constitutes a reference to an Internet resource.

Query String Encoding

  • Letters (A-Z and a-z), numbers (0-9) and the characters ‘.’ , ‘-‘ , ‘~’ and ‘_’ are left as-is
  • SPACE is encoded as ‘+’ or hexadecimal (%20)
  • All other characters are encoded as %FF hexadecimal representation, with any non-ASCII characters first encoded as UTF-8 (or other specified encoding)
  • Typical max value for a single GET parameter value is 512 bytes
Purpose Parameters
Pagination ?offset=x&limit=y
Sorting sort=<criteria>&order=[ASC|DESC]
Max results ?max=n
Dedicated elements ?id=xyz&id=abc&id=def&…
IMPLEMENTATION LIMIT
Firefox Unlimited, although instability occurs with URLs reaching around 65,000 characters.
Safari Unlimited.
Internet Explorer v6 - v7 Maximum length of a URL in Internet Explorer is 2,083 characters, with no more than 2,048 characters in the path portion of the URL.
Internet Explorer v8+ Maximum length of a URL in Internet Explorer is 4,095 characters, with no more than 2,048 characters in the path portion of the URL.
Maximum mailto: length is 500 to 512 characters long.
Sitemap Protocol <loc> URL of the page. This URL must begin with the protocol (such as http) and end with a trailing slash, if your web server requires it. This value must be less than 2,048 characters.
GoogleBot crawler Google will index URLs up to 2047 characters in length.
Google search results page (SERP) Google index-able links that will work when clicked in the SERP’s is ~1855 characters in length.

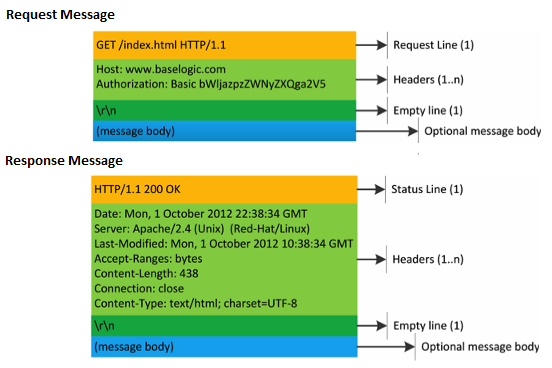

Http Request and Response Message

  • The request line and headers must all end with <CR><LF>
    • <CR> - carriage return character
    • <LF> - line feed character \r\n
  • The empty line must consist of only <CR><LF> and no other whitespace.
  • In the HTTP/1.1 protocol, all headers except Host are optional.


MIME Types (Multipurpose Internet Mail-Extension)

  • Internet media type.
  • referred as Content-types
  • two-part identifier for file formats on the Internet.
    • type/subtype - text/html, text/plain
  • Generally present after the name of a header in several protocols.

Cookies

  • HTTP cookie / web cookie / browser cookie.
  • small piece of data sent from a website and stored in a user’s web browser while browsing.
    • When user revisits, cookies can be retrieved to notify the website about the user’s previous activity.
    • This can include clicking particular buttons, logging in, or a record of which pages were visited by the user even months or years ago.
  • Cookies were designed to be a reliable mechanism for websites to remember the state of the website or activity the user had taken in the past.

Avoiding caching

  • web server response contains Cache-Control: no-cache.
    • web browser or other caching system must check with the originating server first for subsequent requests.

HTTP Conditional GET

  • returns HTTP 304 response rather than HTTP 200.
  • indicates that the resource has not been modified since the previous GET request and the resource will not be returned to the requesting client as part of the response.

Http Methods

Safety

  • If it does not change the state of a resource when invoked.
    • GET, HEAD

Idempotent

  • If it can be called multiple times and the end result is the same.
    • GET, HEAD, PUT, DELETE
  • DELETE is idempotent because there are no side-effects to the resource.
    • subsequent calls can result in an error message dependent on your implementation.

Http Methods

HTTP VERB Description Response Code Note Idempotent Safe Feature
POST Create 201 : CREATED Create a new entity, optionally return URI also.
PUT Update 200 : OK,
202 : ACCEPTED,
204 : NO_CONTENT		 Update an existing entity entirely Y
PATCH Patch 200 : OK,
202 : ACCEPTED,
204 : NO_CONTENT		 Partial updates Y
GET Retrieve 200 : OK Read a list of entities or single entity Y Y linkable, cacheable
DELETE Delete 200 : OK,
202 : ACCEPTED,
204 : NO_CONTENT		 delete an existing entity Y
HEAD Retrieve 200 : OK identical to GET, except that only the HTTP header is returned. Y Safe
OPTIONS API description 200 : OK request information about the communication options available
TRACE Trace 200 : OK invoke a remote, application-layer loop-back of the request message.
Used for testing.
CONNECT     reserves the method name CONNECT for use with a proxy that can dynamically switch to being a tunnel (e.g. SSL tunneling)
  • TRACE: Provides a way to test what server receives. It simply returns what was sent.
  • CONNECT: Used by browser when it knows it talks to a proxy and the final URI begins with https://. The intent of CONNECT is to allow end-to-end encrypted TLS session, so the data is unreadable to a proxy.

POST vs PUT

  • “POST /books” with a bunch of book information might create a new book, and respond with the new URL identifying that book: “/books/5”.
  • “PUT /books/5” would have to either create a new book with the id of 5, or replace the existing book with ID 5.
    • In non-resource style, POST can be used for just about anything that has a side effect.
  • PUT is idempotent - multiple PUTs of the same data to the same URL should be fine
  • POST is not idempotent - multiple POSTs creates multiple objects.
  • PUT is meant as a a method for “uploading” stuff to a particular URI, or overwriting what is already in that URI.

HTTP Response Codes

GROUP Type DESCRIPTION
1xx Informational further action needs to be taken by the user agent in order to fulfill the request.
2xx Successful the client’s request was successfully received, understood, and accepted.
3xx Redirection further action needs to be taken by the user agent in order to fulfill the request.
4xx Client Error intended for cases in which the client seems to have erred.
5xx Server Error server is aware that it has erred or is incapable of performing the request.
2xx Description
200 : OK Successfully executed
201 : CREATED - New resources has been created
- response body is either empty or contains URI(s) of the created resource
- The location header should should also contain the new URI
202 : ACCEPTED - request was valid and has been accepted but has not yet been processed.
- response should include a URI to poll for status updates on the request.
- Allows for asynchronous request
204 : NO_CONTENT request was successful but the server did not have a response
3xx Description
301 : MOVED_PERMANENTLY new location should be returned in the response
304 : Not Modified
307 : Temporary Redirect
4xx Description
400 : BAD_REQUEST Malformed or invalid request
401 : UNAUTHORIZED Invalid authorization credentials
403 : FORBIDDEN Disallowed request. Security error
404 : NOT_FOUND Resource not found
405 : METHOD_NOT_ALLOWED Method (verb) not allowed for requested resource.
Response will provide an “Allow” header to indicate what is allowed
408 : Request Time-out
414 : Request-URI Too Large
415 : UNSUPPORTED_MEDIA_TYPE Client submitted a media type that is incompatible for the specified resource.
5xx Description
500 : INTERNAL_SERVER_ERROR Catchall for server processing problem
503 : SERVICE_UNAVAILABLE Response in the face of too many request

HTTP

Http Authentication

Transfer Layer Security (TLS / SSL)

  • Transfer Layer Security (TLS) and its predecessor, Secure Sockets Layer (SSL).
  • cryptographic protocols to provide communication security over the Internet.
  • TLS and SSL encrypt the segments of network connections at the Application Layer for the transfer Layer using,
    • asymmetric cryptography for key exchange.
    • symmetric encryption for privacy.
    • message authentication codes for message integrity.

Basic access Authentication (BASIC)

  • In context of an HTTP transaction.
  • method for a web browser or other client program to provide a user name and password when making a request.
  • Most basic way of implementing authentication, suitable when we are accessing the application both using browser and other software such as scripts.
  • Browser will use its standard dialog to collect the credentials.
  • Easy to implement, but credentials transmitted as plain text.

  • Hence, you must have TLS/SSL or some network level encryption in place.

  • Before transmitting username:password is Base64 encoded.
  • Base64-encoded string is transmitted in the HTTP header and decoded by the receiver.
  • Base64 makes them unreadable visually, but they are easily decoded.
  • Confidentiality is not the intent of the encoding step
    • rather, the intent is to encode non-HTTP-compatible characters that a username or password may contain, into those that are HTTP-compatible.

Digest access authentication (DIGEST)

  • similar to the BASIC, a digest of the password is transmitted instead of password.
  • Digest communication starts with a client that requests a resource from a web server.
  • If the resource is secured with Digest Authentication, the server will respond with the http status code 401, which means Unauthorized to access this resource.
GET /secured/index.html HTTP/1.0
Host: localhost
Authorization: Digest username="mick",
        realm="baselogic.com",
        nonce="dcd98b7102dd2f0e8b11d0f600bfb0c093",
        uri="/secured/index.html",
        qop=auth,
        nc=00000001,
        cnonce="0a4f113b",
        response="35f308904a9a9623498f358d1cb10afd"
  • response contains term Digest as indication.
  • server also indicates the type of Digest Authentication algorithm used by the client with Quality Of Protection (QOP) and the nonce string, which is a Base64 encoded timestamp and private hash generated by the server.
HA1 = MD5( "mick:baselogic.com:secret key")
HA2 = MD5( "GET:/secured/index.html" )

Form-Based Authentication (FORM)

  • we can use our own form to collect the username and password.
  • It is very flexible in terms of implementation and how we ask for the username and password, but requires extra work for implementing the forms.
  • This method suffers from the same security risk as the BASIC method because the credentials are transmitted as plain text.
